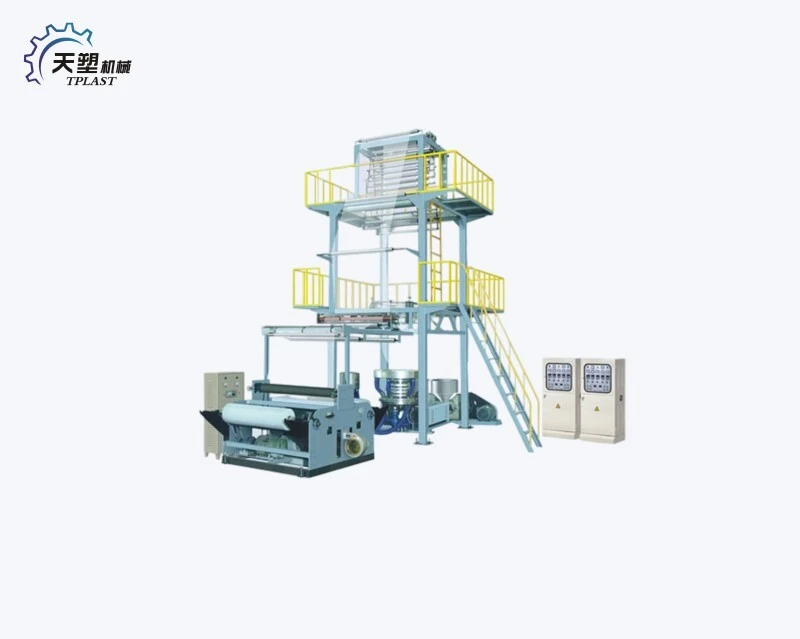

Two Layers Film Blowing Machine
This fil m blowing machine is used for blowing low—density polyethylene(LDPE) ,high —density polyethylene(HDP E) and line ar ity low— density poly ethylene( LLD PE)etc. plastic complex fil m ,It's widely used for liquid packing, printing material, exported product packing, industry product packing etc.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Parameters
| Main technical variables: |
|||
| Model | SJ-50*2/TP1200 | SJ-60*2/TP1500 | SJ-65*2/TP2000 |
| Screw diameter(mm) | 50/55 | 55/60 | 60/65 |
| Screw length(L/D) | 30:1 | 30:1 | 30:1 |
| Screw max.rotary speed(r/min) | 110 | 110 | 110 |
| Output(kg/h) | 110 | 140 | 160 |
| Main motor power(kw) | 15/18.5 | 18.5/22 | 30/37 |
| Die-head diameter(mm) | 300 | 450 | 550 |
| Film thickness(Single Layer)(mm) | 0.02-0.15 | 0.02-0.15 | 0.02-0.15 |
| Film max.folding width(mm) | 1200 | 1500 | 2000 |
| Total Power(kw) | 75 | 85 | 110 |
| Weight(kg) | 5500 | 6000 | 6500 |
| Overall dimension(m) | 4.6*3.5*6 | 5.2*4*7.5 | 5.5*4.5*10 |
| Note: The machine appearance and specifications are subject to change without notice. Swiss high plant without the express written permission of reproduction or dissemination of relevant information. |
|||
Product Introduction
Use:
This fil m blowing machine is used for blowing low—density polyethylene(LDPE) ,high —density polyethylene(HDP E) and line ar ity low— density poly ethylene( LLD PE)etc. plastic complex fil m ,It's widely used for liquid packing, printing material, exported product packing, industry product packing etc.
Optional Parts:
● Auto Loader
● Auto Tension
● Corona Treated
● Auto Rewinder
Product Details
More angles
two layer film (7)
two layer film (8)
two layer film (9)
{{item.score}} Stars
{{item.pre}}%
{{item.nickname ? (item.nickname.slice(0, 2) + '*****') : item.source === 1 ? 'mall buyer' : '--'}}
{{item.comment_time}}
Review in the {{item.country}}
{{itemAttr.params_key}}: {{itemAttr.params_value}}
Related Products
We are committed to the highest quality and standards. Our products follow the trends and utilize the latest technology.
We use Taiwan high quality steel as screw and barrel, which can improve output and film quality. And we also use Taiwan air ring, which can improve film transparency and qu ality. It is suitabIe fo r S hopp ing bag, plastic bag and packing industry. It is with taiwan air ring.It is with automatic tension control and auto control for rewinder.
This film blowing machine is used for blowing low—density polyethylene(LDPE) ,high —den s ity polyethylene(HDPE)and linearity low— density poly ethylene( LLD PE)etc. plastic complex film ,It's widely used fo r liquid packing, printing material, exported product packing, industry produ ct packing etc,I t can do Caco3 materi als instead of HDPE.
The cylinders and the screw stems of extruder are made of high—quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitroge n treatment.
Th e extruder can be lift up to 3 meters according to te chnoIogic alrequirem ents. Mode of fil m blow ing; bottom blowi ng, The coiling unit adopts torque motor to keep pro per tensio n and make even and roII — changing easy.
Th e extruder can be lift up to 3 meters according to te chnoIogic alrequirem ents. Mode of fil m blow ing; bottom blowi ng, The coiling unit adopts torque motor to keep pro per tensio n and make even and roII — changing easy.
This machine is used with Bi—metal Screw and barrel, which is very hard and strong. And it is easy to plastics for raw material s. Th e main motor is Sieme ns bran d. Other spare parts is Schneider and Omron Bran d. Al so th e outp ut is bigg er than normal film blowing machine. It will save the power consumption and improve the output.
The Three Layers Rotary Die Head Film Blowing Machine is a high-quality manufacturing equipment used for producing multiple layers of plastic film efficiently. With its innovative rotary die head design, this machine ensures consistent thickness and uniformity in the film, making it ideal for various packaging applications.
The Three Layer Hall-off Film Blowing Machine is a high-tech piece of equipment used for producing three-layered plastic films. This machine is designed for efficiency and precision in the production of various types of packaging materials.
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitriding, So it is sound in hardness, durable in corrosion resistance. The specially—designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDP E). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Its extruder, cylinder an d screw rods are made of quality alloy steel that have bee n nitridin g, So it is so und in hardn ess, durable in corrosion resistance. The specially—designed screw is of sound quality in plasticizin g, which helps increase the production capacity. I t is app lied to blowing the plastic films like low density polytene (LDPE), high density polytene(H D PE) and linear Iow de nsity polytene (LLDP E). It is widely applied to producing th e packing bags for foodstuff, clothing, rubbish bag and vest ones.
