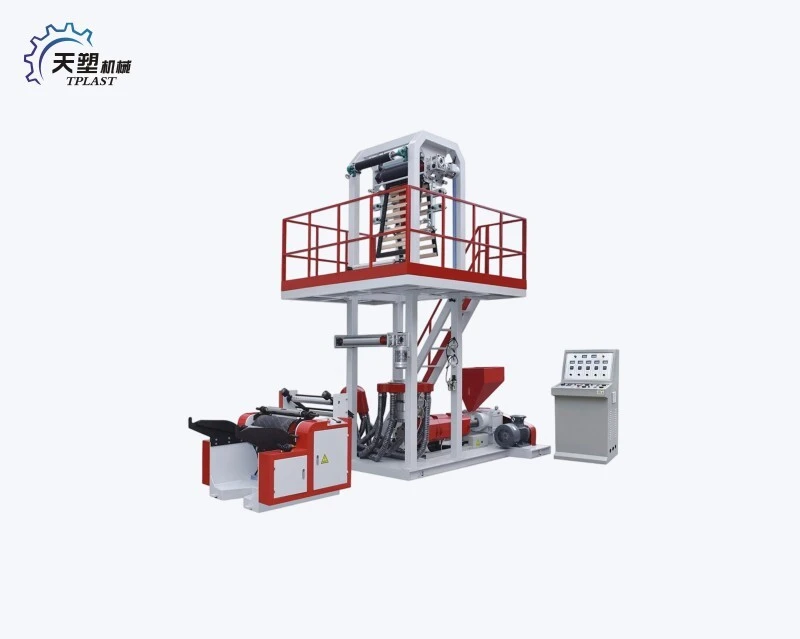

High-speed Mini Film Blowing Machine
We use Taiwan high quality steel as screw and barrel, which can improve output and film quality. And we also use Taiwan air ring, which can improve film transparency and qu ality. It is suitabIe fo r S hopp ing bag, plastic bag and packing industry. It is with taiwan air ring.It is with automatic tension control and auto control for rewinder.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Parameters
| Main technical variables: | |
| Model | TPH45 |
| Diameter of screw | Φ45 |
| Max width of film(mm) | 100-500 |
| Single-face thickness of film(mm) | 0.008-0.10 |
| Output(Kg/h) | 55 |
| L/D | 30:1 |
| Power of main motor(Kw) | 11 |
| Power of traction main motor(Kw) | 1.5 |
| Total power(Kw) | 25 |
| Outline diameter(m) | 4.0*1.5*4.0 |
| Weight(Kg) | 2500 |
| Note: The machine appearance and specifications are subject to change without notice. Swiss high plant without the express written permission of reproduction or dissemination of relevant information. | |
Product Introduction
Use:
We use Taiwan high quality steel as screw and barrel, which can improve output and film quality. And we also use Taiwan air ring, which can improve film transparency and qu ality.
It is suitabIe fo r S hopp ing bag, plastic bag and packing industry. It is with taiwan air ring.It is with automatic tension control and auto control for rewinder.
Optional Parts:
● Auto Loader
● Corona Treater
● Fast Screen Chan ger
