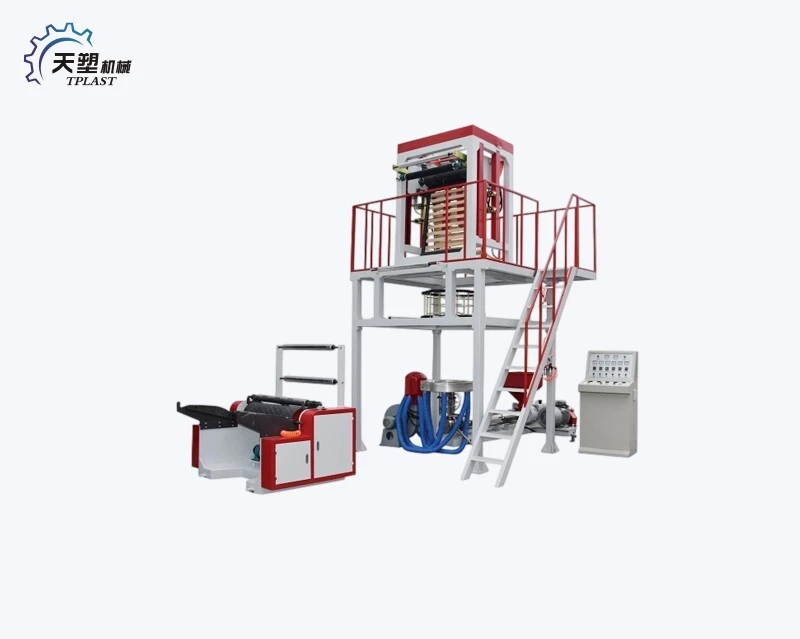

New Type High Speed Film Blowing Machine
This machine is used with Bi—metal Screw and barrel, which is very hard and strong. And it is easy to plastics for raw material s. Th e main motor is Sieme ns bran d. Other spare parts is Schneider and Omron Bran d. Al so th e outp ut is bigg er than normal film blowing machine. It will save the power consumption and improve the output.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Parameters
| Main technical variables: |
||||
| Model | SJ-50/HMB600 | SJ-55/HMB800 | SJ-60/HMB1000 | SJ-65/HMB1200 |
| Screw diameter(mm) | Φ50 | Φ55 | Φ60 | Φ65 |
| Screw length(L/D) | 30:1 | 30:1 | 30:1 | 30:1 |
| Film width(mm) | 200-600 | 300-800 | 400-1000 | 600-1200 |
| Film thickness(mm) | 0.006-0.10 | 0.006-0.10 | 0.006-0.10 | 0.006-0.10 |
| Max.extrusion output(kg/h) | 60 | 70 | 80 | 90 |
| Die size(mm) | Φ60/100 | Φ80/150 | Φ100/200 | Φ120/250 |
| Blower | 3kw | 3kw | 3.7kw | 4kw |
| Cylinder cooling(kw) | 0.13*2 | 0.13*2 | 0.13*3 | 0.13*3 |
| Driving motor(kw) | 15 | 18.5 | 22 | 30 |
| Total power(kw) | 28 | 36 | 40 | 50 |
| Cover dimension L*W*H(m) | 5.0*2.1*4.0 | 5.0*2.3*4.2 | 5.0*2.3*4.5 | 5.0*2.3*5 |
| Weight of machine(kg) | 2500 | 2800 | 3000 | 3200 |
| Note: The machine appearance and specifications are subject to change without notice. Swiss high plant without the express written permission of reproduction or dissemination of relevant information. |
||||
Product Introduction
Use:
This machine is used with Bi—metal Screw and barrel, which is very hard and strong. And it is easy to plastics for raw material s. Th e main motor is Sieme ns bran d. Other spare parts is Schneider and Omron Bran d. Al so th e outp ut is bigg er than normal film blowing machine. It will save the power consumption and improve the output.
Optional Parts:
● Auto Loader
● Corona Treater
Product Details
