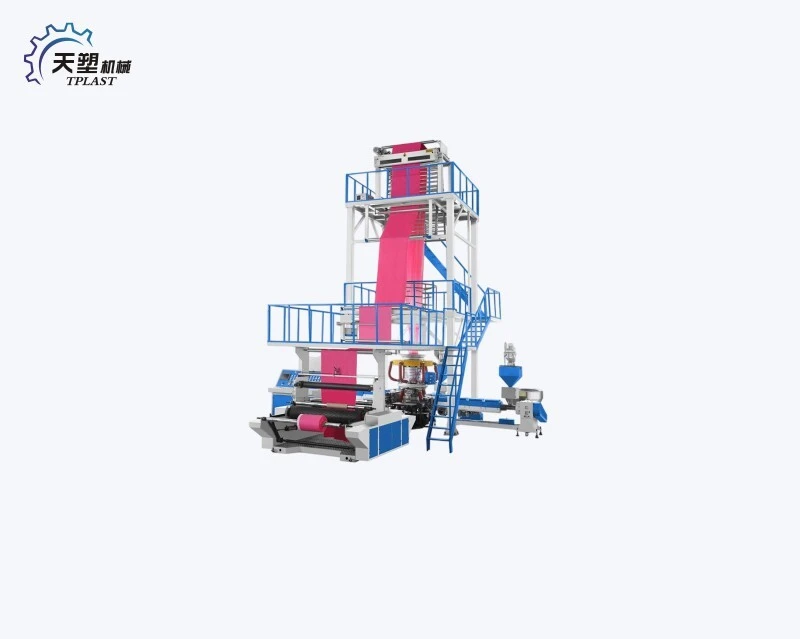

Three Layers Rotary Die Head Film Blowing Machine
This three layers rotary die head film blowing machine is designed for high efficiency and precision in producing plastic film with various thicknesses. It offers a cost-effective solution for industries requiring reliable and consistent film production capabilities.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Parameters
| Main technical variables: |
||||
| Model | TP-TL1200 | TP-TL1500 | TP-TL1800 | TP-TL2000 |
| Screw diameter(mm) | 50/55/50 | 55/65/55 | 60/70/60 | 65/75/65 |
| Screw ratio(L/D) | 30:1 | 30:1 | 30:1 | 30:1 |
| Screw speed（r/min) | 110 | 110 | 110 | 110 |
| Power of main motor(kw) | 15/18.5/15 | 18.5/30/18.5 | 22/37/22 | 30/45/30 |
| Range of die(mm) | ￠300 | ￠350 | ￠450 | ￠500 |
| Single-sided thickness of Film(mm) | 0.02-0.15 | 0.02-0.15 | 0.03-0.15 | 0.05-0.15 |
| Max.folding width of film（mm) | 1200 | 1500 | 1800 | 2000 |
| Max output | 100kg/h | 130kg/h | 150kg/h | 180kg/h |
| Average power(kw) | 80 | 90 | 110 | 130 |
| Weight of machine(kg) | 6500 | 7500 | 9000 | 11000 |
| Overall dimensions(L*W*H)(m) | 7.5*5.5*8 | 8*6.5*9 | 8.5*7.5*10.5 | 10*8*11 |
| Note: The machine appearance and specifications are subject to change without notice. Swiss high plant without the express written permission of reproduction or dissemination of relevant information. |
||||
Product Introduction
Optional Parts:
● AutoLoader
● CoronaTreater
● Hydraulic Screen Changer
● Automatic Rewinder
Product Details
More angles
three layer taiwan (10)
three layer taiwan (11)
{{item.score}} Stars
{{item.pre}}%
{{item.nickname ? (item.nickname.slice(0, 2) + '*****') : item.source === 1 ? 'mall buyer' : '--'}}
{{item.comment_time}}
Review in the {{item.country}}
{{itemAttr.params_key}}: {{itemAttr.params_value}}
Related Products
We are committed to the highest quality and standards. Our products follow the trends and utilize the latest technology.
Its extruder, cylin der an d screw rods are made of quality alloy steel that have bee n nitridin g, So it is so un d in hardness, durable in corrosion resistance. The specially—designed screw is of sound quality in plasticizin g, which helps increase th e production capacity. It is app lied to blowing the plastic films like low density polytene (LDPE), high density polytene(HD PE) and linear Iow de nsity polytene (LLDP E). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
The Three Layer Hall-off Film Blowing Machine is a high-tech piece of equipment used for producing three-layered plastic films. This machine is designed for efficiency and precision in the production of various types of packaging materials.
It is used for blowing low density polyethylene (LDPE) and high density polyethylene(HDPE) color striped plastic film, etc. Which are widely used for packing food, fruit, garments, textil e, daily necessities and oth er civil and industrial produ cts. The cylinder and th e screw extruder are made of high—quality alloy steel with optimum hardness and strong corrosion resistance after nitrog en treatment. The coiling unit adopts torque motor to keep proper tensio n and make rollin g even and roll—chang in g easy.
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitriding, So it is sound in hardness, durable in corrosion resistance. The specially—designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDP E). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
We use Taiwan high quality steel as screw and barrel, which can improve output and film quality. And we also use Taiwan air ring, which can improve film transparency and qu ality. It is suitabIe fo r S hopp ing bag, plastic bag and packing industry. It is with taiwan air ring.It is with automatic tension control and auto control for rewinder.
The cylinders and the screw stems of extruder are made of high—quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitroge n treatment.
Th e extruder can be lift up to 3 meters according to te chnoIogic alrequirem ents. Mode of fil m blow ing; bottom blowi ng, The coiling unit adopts torque motor to keep pro per tensio n and make even and roII — changing easy.
Th e extruder can be lift up to 3 meters according to te chnoIogic alrequirem ents. Mode of fil m blow ing; bottom blowi ng, The coiling unit adopts torque motor to keep pro per tensio n and make even and roII — changing easy.
This fil m blowing machine is used for blowing low—density polyethylene(LDPE) ,high —density polyethylene(HDP E) and line ar ity low— density poly ethylene( LLD PE)etc. plastic complex fil m ,It's widely used for liquid packing, printing material, exported product packing, industry product packing etc.
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially—designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene (HDPE) and linear low density polytene (LLDPE). It is widely ap plied to producin g the pack ing bags fo r foodstuff, clothing, rubbish bag and vest ones.
