High speed printing machine YTB (Printing speed: 80—100m/min) 1

High speed printing machine YTB (Printing speed: 80—100m/min) 2

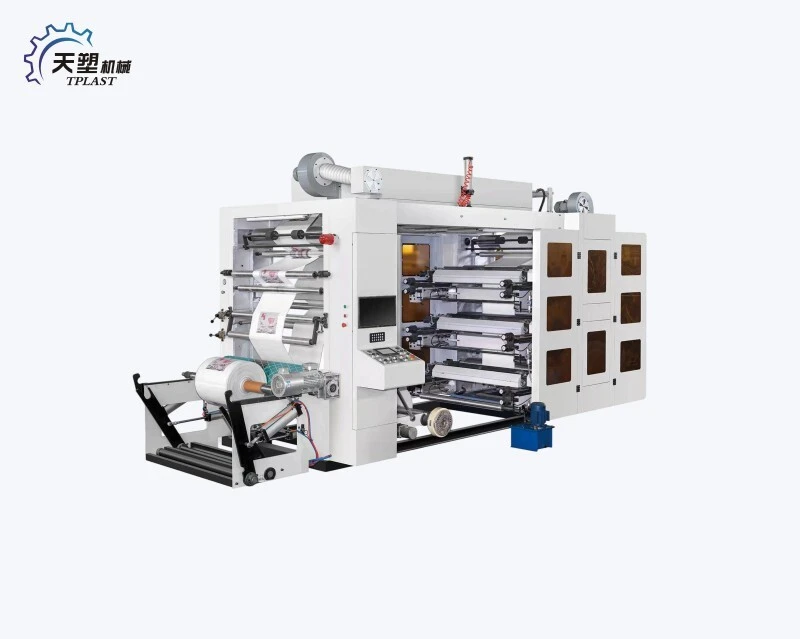

High speed printing machine YTB (Printing speed: 80—100m/min)

The High speed printing machine YTB is designed to deliver fast and efficient printing with a speed of 80-100m/min, making it ideal for high-volume printing tasks. Its precision and reliability ensures consistent and high quality output for your printing needs.

Inquiry

Write a Review

Product Parameters

Main technical variables:
Type	YTB-600	YTB-800	YTB-1000	YTB-1200
Max.effective printing width（mm)	560mm	760mm	960mm	1160mm
Max.web width(mm)	600mm	800mm	1000mm	1200mm
Max.printing speed(m/min)	80-100m/min	80-100m/min	80-100m/min	80-100m/min
Max.mechanical speed（m/min)	110m/min	110m/min	110m/min	110m/min
Max.diameter of roll material(mm)	Φ650mm	Φ650mm	Φ650mm	Φ650mm
Internal diameter of roll core(mm)	Φ76mm	Φ76mm	Φ76mm	Φ76mm
Rang of repeat printing length(mm)	280-1200mm	280-1200mm	280-1200mm	280-1200mm
Accuracy of registration(mm)	±0.15mm	±0.15mm	±0.15mm	±0.15mm
Plate thickness(Both side adhesive included)(mm)	2.38mm	2.38mm	2.38mm	2.38mm
Heating Power(kw)	15Kw	20Kw	23Kw	28Kw
Total Power(kw)	25Kw	30Kw	35Kw	40Kw
Weight of machine(kg)	4500kg	4800kg	5000kg	5500kg
Overall dimension(m)	5.51.72.5	5.522.5	5.52.12.5	5.52.32.5
Note: The machine appearance and specifications are subject to change without notice. Swiss high plant without the express written permission of reproduction or dissemination of relevant information.

Product Parameters

Main technical variables:
Model	TP45
Diameter of screw	Φ45
Max width of film(mm)	100-500
Single-face thickness of film(mm)	0.008-0.10
Output(Kg/h)	45
L/D	30:1
Power of main motor(Kw)	11
Power of traction main motor(Kw)	1.5
Total power(Kw)	25
Outline diameter(m)	2.32.02.3
Weight(Kg)	2200
Note: The machine appearance and specifications are subject to change without notice. Swiss high plant without the express written permission of reproduction or dissemination of relevant information.

Feature

Our factory use Turkish high technology design thismachine, no mater film is thin or thick, the sealing line is seven and whole sealing line from left to right is the same,(sealing line is without wide or narrow) cutting line is seven too.

High speed printing machine YTB (Printing speed: 80—100m/min) 3

COMPANY STRENGTH

The sealing line is no stretch.

High speed printing machine YTB (Printing speed: 80—100m/min) 4

COMPANY STRENGTH

lt is suitable to do very thick bag.

picture (12) (2)

The sealing knife and cutting knife is together, So the distance is very reasonable.

Feature

Product Introduction

Characteristics:

The cylinder and th e screw extruder are made of high—quality alloy steel with optimum hardness and strong corrosion resistance after nitrog en treatment. The coiling unit adopts torque motor to keep proper tensio n and make rollin g even and roll—chang in g easy.

Optional Parts:

● Auto Tension

● AutoLoader

● Corona Treater

Product Details

YTB Printmachine (1) (2)

YTB Printmachine (2)

YTB Printmachine (3)

YTB Printmachine (6)

YTB Printmachine (1) (2)

YTB Printmachine (2)

YTB Printmachine (6)

YTB Printmachine (3) (2)

More angles

YTB Printmachine (7)

YTB Printmachine (8)

YTB Printmachine (9)

YTB Printmachine (11)

Related Products

We are committed to the highest quality and standards. Our products follow the trends and utilize the latest technology.

Flexo Printing Machine

A flexo printing machine is a type of printing press that uses flexible relief plates to transfer ink onto various materials such as paper, cardboard, and plastic. It is commonly used for high-quality printing of packaging materials and labels.

CI Flexo printing machine (printing speed 150—180m/min)

The CI Flexo printing machine is designed to efficiently print at speeds of 150 to 180 meters per minute. With advanced technology and precise controls, it ensures high-quality printing results for various packaging materials.

High—speed Double Colots Film Blowing Machine

It is used for blowing low density polyethylene (LDPE) and high density polyethylene(HDPE) color striped plastic film, etc. Which are widely used for packing food, fruit, garments, textil e, daily necessities and oth er civil and industrial produ cts. The cylinder and th e screw extruder are made of high—quality alloy steel with optimum hardness and strong corrosion resistance after nitrog en treatment. The coiling unit adopts torque motor to keep proper tensio n and make rollin g even and roll—chang in g easy.

Mini Film Blowing Machine

Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially—designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene (HDPE) and linear low density polytene (LLDPE). It is widely ap plied to producin g the pack ing bags fo r foodstuff, clothing, rubbish bag and vest ones.

High-speed Mini Film Blowing Machine

We use Taiwan high quality steel as screw and barrel, which can improve output and film quality. And we also use Taiwan air ring, which can improve film transparency and qu ality. It is suitabIe fo r S hopp ing bag, plastic bag and packing industry. It is with taiwan air ring.It is with automatic tension control and auto control for rewinder.

Polypropylene Film Blowing Machine

The cylinders and the screw stems of extruder are made of high—quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitroge n treatment.

Th e extruder can be lift up to 3 meters according to te chnoIogic alrequirem ents. Mode of fil m blow ing; bottom blowi ng, The coiling unit adopts torque motor to keep pro per tensio n and make even and roII — changing easy.

Tai Wan Quality Double—head Film Blowing Machine Set

Its extruder, cylinder an d screw rods are made of quality alloy steel that have bee n nitridin g, So it is so und in hardn ess, durable in corrosion resistance. The specially—designed screw is of sound quality in plasticizin g, which helps increase the production capacity. I t is app lied to blowing the plastic films like low density polytene (LDPE), high density polytene(H D PE) and linear Iow de nsity polytene (LLDP E). It is widely applied to producing th e packing bags for foodstuff, clothing, rubbish bag and vest ones.

HDPE/LDPE High Speed Film Blowing Machine

Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitriding, So it is sound in hardness, durable in corrosion resistance. The specially—designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDP E). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
