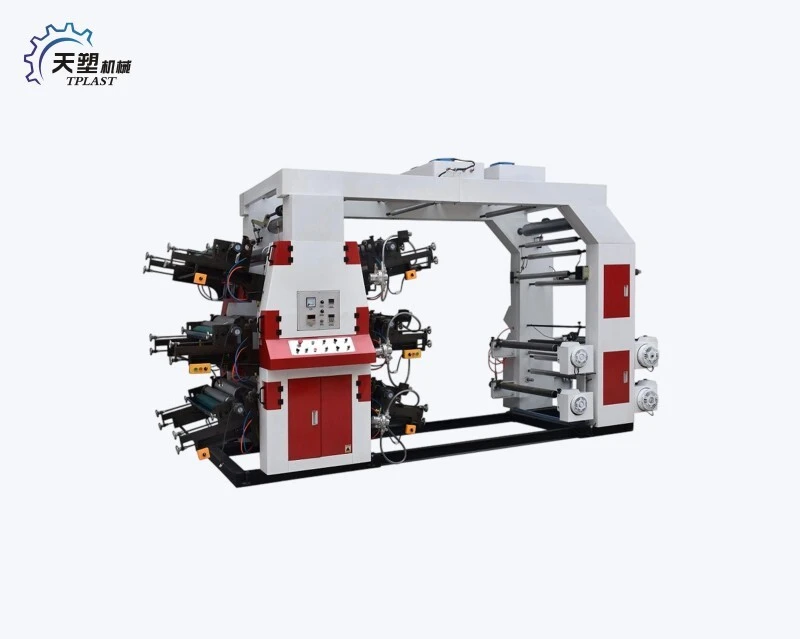

Flexo Printing Machine
This flexo printing machine is designed for high-quality printing on various materials, making it a versatile tool for businesses looking to enhance their packaging or labeling. With precise registration control and adjustable ink viscosity, this machine ensures consistent and professional results every time.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Parameters
| Main technical variables: | ||||
|
Type |
YTH-600 |
YTH-800 |
YTH-1000 |
YTH-1200 |
|
Max.effective printing width（mm) |
560 |
760 |
960 |
1160 |
|
Max.web width(mm) |
600 |
800 |
1000 |
1200 |
|
Max.printing speed(m/min) |
70 |
70 |
70 |
70 |
|
Max.mechanical speed（m/min) |
80 |
80 |
80 |
80 |
|
Max.diameter of roll material(mm) |
Φ450 |
Φ450 |
Φ450 |
Φ450 |
|
Internal diameter of roll core(mm) |
Φ76 |
Φ76 |
Φ76 |
Φ76 |
|
Rang of repeat printing length(mm) |
200-1200 |
200-1200 |
200-1200 |
191-1200 |
|
Accuracy of registration(mm) |
±0.25 |
±0.25 |
±0.25 |
±0.25 |
|
Plate thickness(Both side adhesive included)(mm) |
2.38 |
2.38 |
2.38 |
2.38 |
|
Heating Power(kw) |
8 |
9 |
10 |
12 |
|
Total Power(kw) |
11.5 |
15 |
18.5 |
22 |
|
Weight of machine(kg) |
3000 |
3500 |
4000 |
4500 |
|
Overall dimension(m) |
L4.3*W1.7*H2.5 |
L4.3*W1.9*H2.5 |
L4.3*W2.1*H2.5 |
L4.3*W2.3*H2.5 |
| Note: The machine appearance and specifications are subject to change without notice. Swiss high plant without the express written permission of reproduction or dissemination of relevant information. | ||||
Product Details
More angles
6 color print (13)
6 color print (15)
6 color print (21)
6 color print (22)
