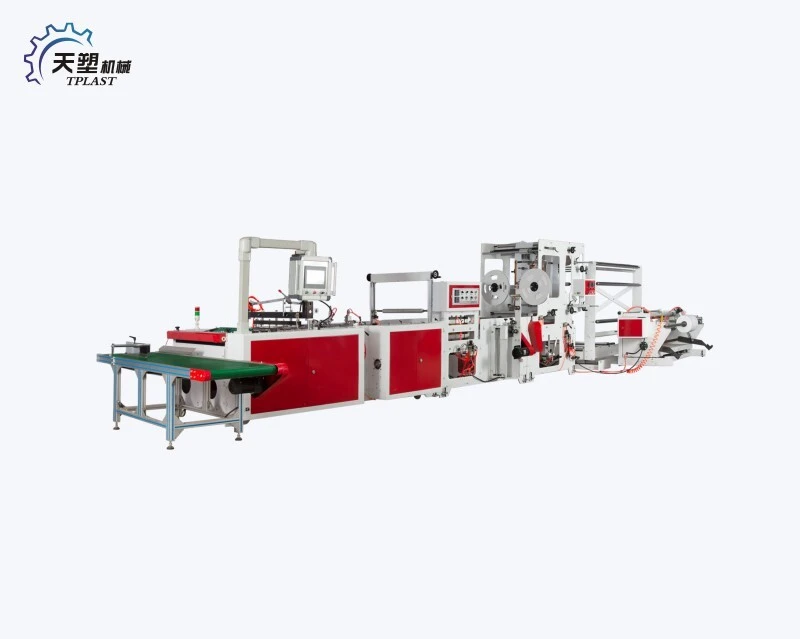

Fully Automatic Plastic Hand Bag Making Machine(FourFunctions)
Use: This machine has fourfunctions(soft loop handle bag, patch handle bag, poly draw handle bag, die cut handle bag).lt is coupled with machinery, light, electronic and pneumatic.
● The best quality side sealing knife of Italy,Heated to high temperatures not deformation.
● Newly designof sealing knife top lift and turn over system.
● It's designed by heating punching and it'seasy to cut off, the waster is excluded automatically.
Product Parameters
| Main technical variables: | |
| Model | TP-800ZD |
| Length of bag-making(Height of bag)(mm) | 250-750 |
| Widthof bag-making(mm) | 250-600 |
| Top-folding edge(mm) | 50-75 |
| Bottom gusset(mm) | 20-70 |
| Soft loop handle bag(pcs/min) | 60 |
| Patch handle bag(pcs/min) | 60 |
| Poly draw handle bag(pcs/min) | 65 |
| Die cut handle bag(pcs/min) | 80 |
| Total power(kw) | 13 |
| Machine weight(kg) | 3500 |
| Machine dimension(LxWxH)（mm) | 8200*3100*1870 |
| Air compressor(notincluded)(HP) | 6 |
| Note: The machine appearance and specifications are subject to change without notice. Swiss high plant without the express written permission of reproduction or dissemination of relevant information. | |
Product Introduction
Use:
This machine has fourfunctions(soft loop handle bag, patch handle bag, poly draw handle bag, die cut handle bag).lt is coupled with machinery, light, electronic and pneumatic.
Characteristics:
● Flexible soft loop handle and patch film feeding system, fully automatic
● Pre-sealing knife heated on double sidesand strong forfusing,to make the bags without deformation.
● The best quality side sealing knife of Italy,Heated to high temperatures not deformation.
● Newly designof sealing knife top lift and turn over system.
● It's designed by heating punching and it'seasy to cut off, the waster is excluded automatically.
Optionalparts:
● Single sheet film folding unit, hydrulic loading device(connectorseparate).
● Bottom seal knife+double seal knife.
● Top folding continuously sealing device.
Product Details
More angles
