Automatic Double Line Garbage Rolling Bag Making Machine 1
Automatic Double Line Garbage Rolling Bag Making Machine 2
Automatic Double Line Garbage Rolling Bag Making Machine 1
Automatic Double Line Garbage Rolling Bag Making Machine 2

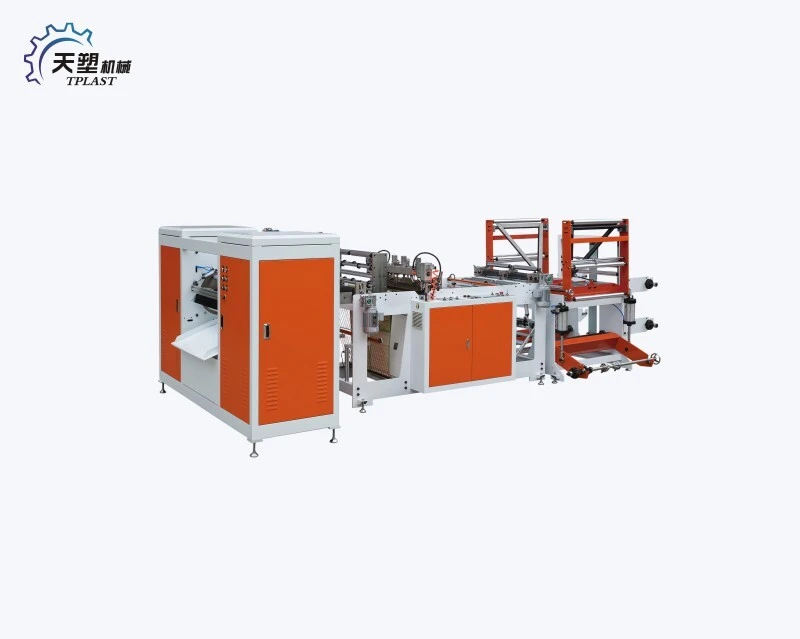

Automatic Double Line Garbage Rolling Bag Making Machine

This automatic double line garbage rolling bag making machine is designed for high efficiency production of garbage bags. It features a dual line system that allows for simultaneous production of two rolls of garbage bags, increasing productivity and reducing production time.

Inquiry

    oops...!

    no product data.

    Go to homepage
    Write a Review

    Product Parameters

    Main technical variables:
    Model TP-DL800 TP-DL1000 TP-DL1200
    Width of sealing& cutting（mm) 750*2  360*4   950*2  460*4 1150*2  560*4
    Length of sealing & cutting(mm) 2000 2000 2000
    Speed of bag-making(pc/min) 240-480 240-480 240-480
    Power of motor(kw) 1.5 1.5 2
    Weight(Kg) 900 1100 1100
    Overall dimensions(mm)    3.5*1.4*1.8   3.8*1.8*2.1 3.8*1.8*2.1
    Note: The machine appearance and specifications are subject to change without notice. Swiss high plant without the express written permission of reproduction or dissemination of relevant information.

    Product Parameters

    Main technical variables:
    Model TPGB-300x2
    Unwinder roll width(two lines)(mm) 180-500
    Final roll bag width(two lines)(mm)  80-250
    Bag length(mm) 450-1200
    Bag thickness(mm) 0.01-0.05
    Bag speed(m/min) 80m/min*2lines
    Air pressure(HP) 5.5
    Total power(kw) 12.5
    Weight(kg) 2400
    Size(mm) 5000x2100x1500
    Note: The machine appearance and specifications are subject to change without notice. Swiss high plant without the express written permission of reproduction or dissemination of relevant information.

    Feature

    Our factory use Turkish high technology design thismachine, no mater film is thin or thick, the sealing line is seven and whole sealing line from left to right is the same,(sealing line is without wide or narrow) cutting line is seven too.

    Automatic Double Line Garbage Rolling Bag Making Machine 3
    COMPANY STRENGTH
    The sealing line is no stretch.
    Automatic Double Line Garbage Rolling Bag Making Machine 4
    COMPANY STRENGTH
    lt is suitable to do very thick bag.
    picture (12) (2)
    picture (12) (2)
    The sealing knife and cutting knife is together, So the distance is very reasonable.

    Feature

    Our factory use Turkish high technology design thismachine, no mater film is thin or thick, the sealing line is seven and whole sealing line from left to right is the same,(sealing line is without wide or narrow) cutting line is seven too.

    Product Introduction

    Use:

    This machine has fourfunctions(soft loop handle bag, patch handle bag, poly draw handle bag, die cut handle bag).lt is coupled with machinery, light, electronic and pneumatic.

    Characteristics:

    ● Flexible soft loop handle and patch film feeding system, fully automatic

    ● Pre-sealing knife heated on double sidesand strong forfusing,to make the bags without deformation.

    ● The best quality side sealing knife of Italy,Heated to high temperatures not deformation.

    ● Newly designof sealing knife top lift and turn over system.

    ● It's designed by heating punching and it'seasy to cut off, the waster is excluded automatically.

    Optionalparts:

    ● Single sheet film folding unit, hydrulic loading device(connectorseparate).

    ● Bottom seal knife+double seal knife.

    ● Top folding continuously sealing device.

    Garbage bag (9)

    Product Details

    02 (7)
    02 (7)
    2 lines garbage (2) (2)
    2 lines garbage (2) (2)
    2 lines garbage (3) (2)
    2 lines garbage (3) (2)
    2 lines garbage (4) (2)
    2 lines garbage (4) (2)
    2 lines garbage (5) (2)
    2 lines garbage (5) (2)
    2 lines garbage (2) (2)
    2 lines garbage (2) (2)
    2 lines garbage (3) (2)
    2 lines garbage (3) (2)
    2 lines garbage (4) (2)
    2 lines garbage (4) (2)
    2 lines garbage (5) (2)
    2 lines garbage (5) (2)

    More angles

    2 lines garbage (6)
    2 lines garbage (6)
    2 lines garbage (7)
    2 lines garbage (7)
    2 lines garbage (9)
    2 lines garbage (9)
    2 lines garbage (10)
    2 lines garbage (10)
