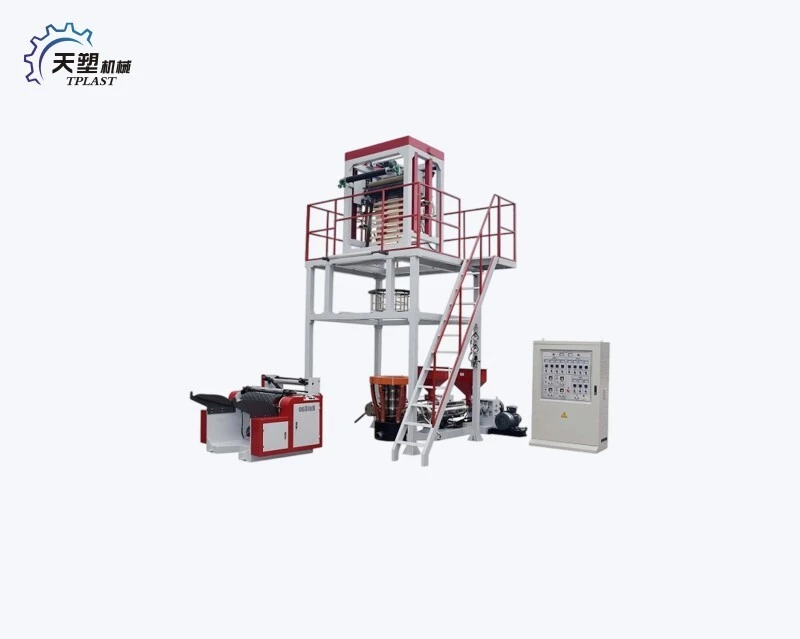

ABA Three Layers Film Blowing Machine
This film blowing machine is used for blowing low—density polyethylene(LDPE) ,high —den s ity polyethylene(HDPE)and linearity low— density poly ethylene( LLD PE)etc. plastic complex fil m ,It's widely used fo r liquid packing, printing material, exported product packing, industry produ ct packing etc,I t can do Caco3 materi als instead of HDPE.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Parameters
| Main technical variables: |
|||
| Model | SJ-50/ABA800 | SJ-55/ABA1000 | SJ-60/ABA1200 |
| Screw diameter(mm) | 45/50 | 55/50 | 60/55 |
| Screw length(L/D) | 30:1 | 30:1 | 30:1 |
| Film width(mm) | 200-800 | 250-1000 | 300-1200 |
| Film thickness(mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
| Max.extrusion output(kg/h) | 80 | 90 | 100 |
| Max.extrusion output(kg/h) | 0.13*2 | 0.13*2 | 0.13*2 |
| Driving motor(kw) | 11kw/15kw | 18.5kw/15kw | 22KW/18.5KW |
| Temperature control | 3/3 | 3/3 | 3/4 |
| Average power-consume(kw) | 50kW | 52kW | 55kW |
| Die size(mm) | 80/150 | 100/200 | 120/250 |
| Winding speed(m/min) | 10-80 | 10-80 | 10-80 |
| Take-up motor(kw) | 1.5 | 1.5 | 1.5 |
| Weightof machine(kg) | 3000 | 3300 | 3500 |
| Cover dimension(m) | 4.2*3.3*4.5 | 4.4*3.5*5 | 4.6*3.6*5.5 |
| Note: The machine appearance and specifications are subject to change without notice. Swiss high plant without the express written permission of reproduction or dissemination of relevant information. |
|||
Product Introduction
Use:
This film blowing machine is used for blowing low—density polyethylene(LDPE) ,high —den s ity polyethylene(HDPE)and linearity low— density poly ethylene( LLD PE)etc. plastic complex fil m ,It's widely used fo r liquid packing, printing material, exported product packing, industry produ ct packing etc,I t can do Caco3 materi als instead of HDPE.
Optional Parts:
● Auto Loader
● Auto Tension 3, Corona Treater
● Auto Rewinder
● Drier
Product Details
